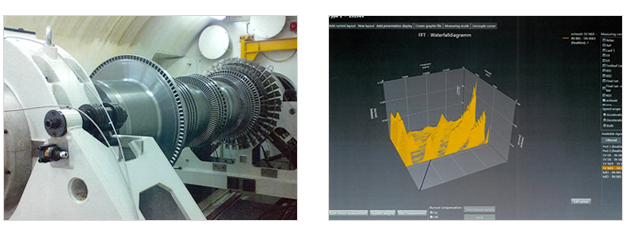

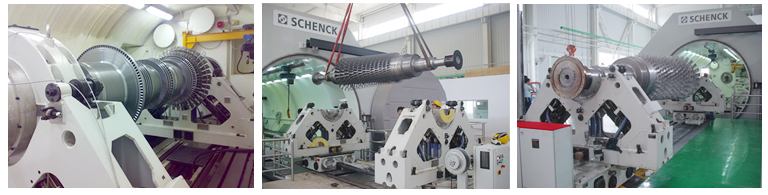

| High Speed Balancing |
Korea Revision Co., Ltd. considers the world its stage.
We will strive to become the world’s top company in the field through creative innovations and new endeavors. |
Cases where high-speed balancing is necessary
- The center of the rotation has been shifted;
- The windings of a generator have been newly installed;
- Generator retaining ring, etc. has been largely disassembled;
- There were vibration problems or repairs performed due to any of the following reasons :
- Bent rotor
- Partial change in the weight due to rotor touch
- Breakage
- Collapse of the thermal equilibrium
- A turbine rotor with the blade replaced;
- A turbine rotor with serious maintenance work performed on the blade;
- Machining of the bearing or coupling;
- Any other cases in which a mechanical imbalance is suspected.
| |
DH-8 |
DH-50 |
| Rotor Weight (kg) |
1,000 ~ 32,000 |
200 ~ 4,500 |
| Max. Diameter (mm) |
3,000 |
3,000 |
| Speed (rpm) |
~ 8,000 |
~ 20,000 |
| Rotor Length (mm) |
9,000 |
9,000 |
| Axial Distance (mm) |
1,200 ~ 8,500 |
1,000 ~ 8,500 |
